Features & Specifications 2018-10-30T16:07:18+00:00

Touch me, I light you!

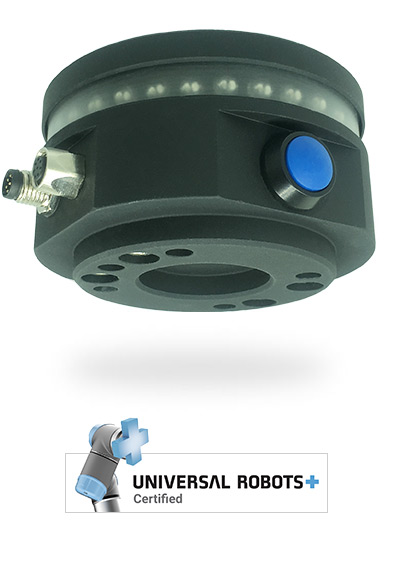

YOUring integrates robots Universal Robots and increases the rate of interaction between man and machine

  • Totally Wireless
    Easy to be mounted on the robot tool flange
  • TS15066 Compliant
    Perfectly compliant with current legislation
  • Rotating Led effect
    Lights rotates 360 degrees
  • Flashing light
    With different intervals and modes
  • Change colour
    Setting and changing colors
  • Rainbow lights
    All available colors range
  • Freedrive button
    Dedicated to the function
  • Programmable button
    To set up your scripts
  • YOUteach button
    To save points on the fly
  • Programmable buzzers
    Adjustable intensity and tone
  • Polyscope integration
    Granted by our URCaps Plugin

YOUring is a tool for enhancing the efficacy and collaboration between the user and the robot, ensures safety and free of movement.

The robot with the YOUring can show the direction of the movement, by tracing the positions with the led.
The user can benefit of a new freedrive button, directly on the tool flange of the robot and setup specific colors in order to trace specific behaviors, during the execution of a program, or also to signal a particular safety mode of the robot.

New Polyscope commands are available to the user: YOUring instruction to setup lights and buzzer and Wait YOUring button instruction to wait when the user presses one or more of the YOUring buttons.

WATCH THE VIDEO TEASER!

DISCOVER YOUTEACH!

Technical Specifications

Diameter 82 mm
Height 42-46 mm
Weight 300 g
Peak current request 400 mA
[buzzer 100 mA]
[all white led on 300 mA]

Easy to use in Polyscope thanks to our URCaps Plugin!

More support

Discover YOUteach

The new feature that makes the YOUring even smarter

With the new YOUteach feature you can save the points in freedrive mode without the teach pendant!

With this feature, developed by Alumotion and implemented in the last YOUring software release, you can record the points of the robot on the fly, for a quicker teaching activity.

  1. Install the 1.1.1 version of URcap
  2. From the URcaps tab in Polyscope insert the instruction YOUteach
  3. Go to the command tab
  4. Select YOUteach instruction
  5. Move the robot in freedrive mode with the black button
  6. Save the points on the fly, with the blue button

If the points 3. and 4. are followed correctly, every time a point is saved with the YOUteach feature a green flash and a beep sound will be emitted from the YOUring

Totally Wireless

Easy to be mounted on the robot tool flange

TS15066 Compliant

Perfectly compliant with current legislation

Rotating Led effect

Lights rotates 360 degrees

Flashing light

With different intervals and modes

Change colour

Setting and changing colors

Rainbow lights

All available colors range

Freedrive button

Dedicated to the function

Programmable button

To set up your scripts

YOUteach button

To save points on the fly

Programmable buzzers

Adjustable intensity and tone

Polyscope integration

Granted by our URCaps Plugin

Patent pending

As guarantee of quality
